R3: Unable to connect with bluetooth to any device

General
1

Hello everyone,

Recently got my new R3 and still trying to set it up.

While trying to connect through bluetooth (I tried two windows devices and one android), I am running into problems:

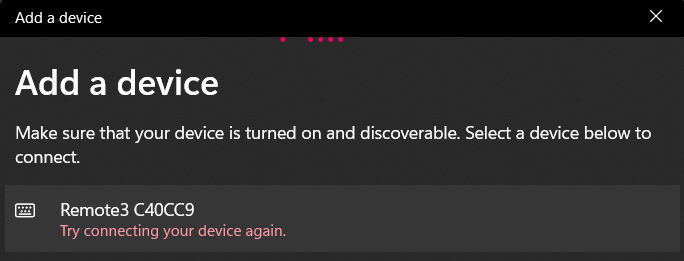

Windows give me “Try to connect your device again”

image684×261 15.3 KB

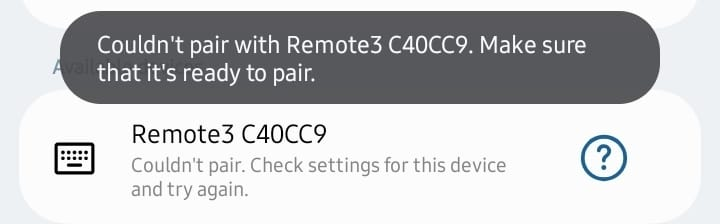

Android gives me “Couldnt pair. Check settings…”

image720×224 54.6 KB

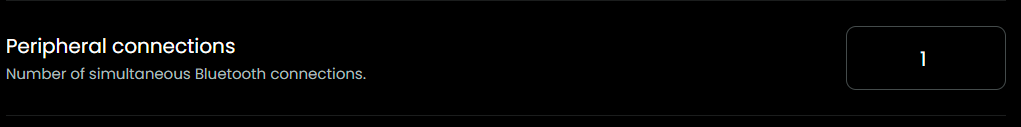

I tried increasing the peripheral connections setting on the web configurator, just in case. But, it’s stuck at 1 - already rebooted 3 times:

image1021×127 5.73 KB

Bluetooth is on.
Current version: 0.6.0
Advertisement name: Remote3 000000

Running latest stable fw:
System version: 2.6.1

Is there an issue?
Or am I missing something?
Any pointers appreciated

2

Hi,

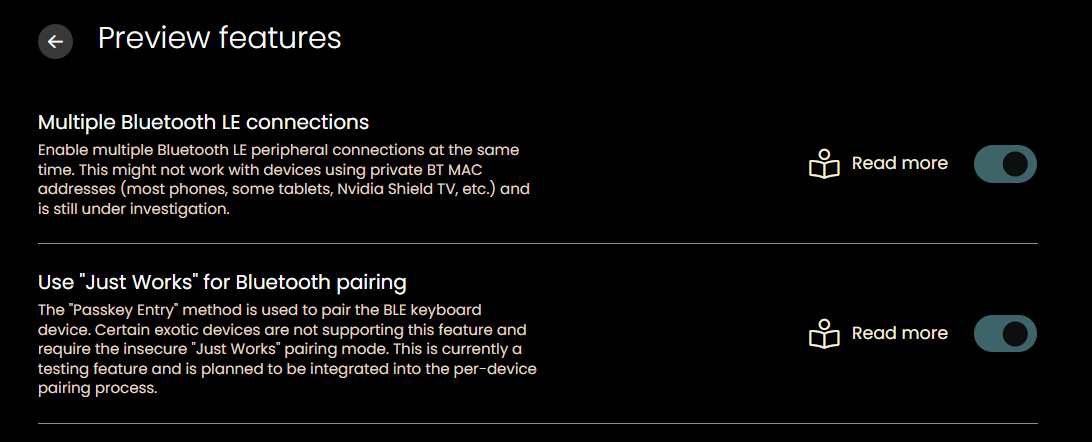

are the devices displaying a code? If not activate “just works” in settings, development, preview features. The remote can only handle BLE devices which should be available if at least BlueTooth 4 is used.

Ralf

1 Like
3

No, not android nor windows are displaying a code.

I have enabled Just works already - still the same.

BTW, i am trying to connect the remote as an input device to my PC, this is possible right? (not the other way around, connect a keybard to the remote)

4

Android or Android TV?

I am not sure about a PC but I will check. The remote anounces itself as a HID device which means keyboard/mouse but as I said only BLE. It worked for me with some FireTV and some Android TV devices.

Ralf

5

Android phone - just tried the first device i had in front of me. Maybe there’s an extra setting to accept btle hid device on win 11?

6

I just tested with my W11 Pro and an BlueTooth 5.4 adapter and I could pair it at once. I just enabled BlueTooth and “just works” on my R2 and in W11 I opened settings, bluetooh (don´t know the english name) and pressed add and bluetooth. 1st pairing attempt failed but I waited a few seconds and then success.

My BlueTooth adapter in the PC only supported 1 remote. I had to remove my R2 then I could pair the R3.

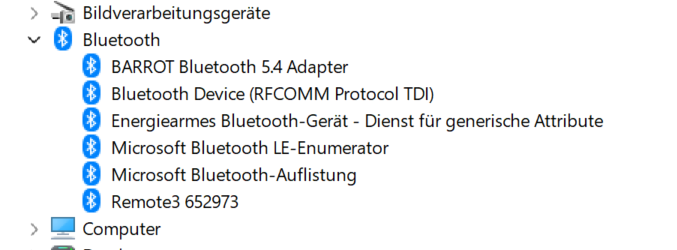

And it worked. I pressed 1, 2 and 3 on the remote and saw it in this post.

Ralf

7

[quote=“HarmonyFan, post:6, topic:2865”]

My BlueTooth adapter in the PC only supported 1 remote. I had to remove my R2 then I could pair the R3.

[/quote]

How do you know this?

I have a ps5 remote paired with my PC, I’ll try to remove it. Maybe that’s the issue.

8

It was a dedicated guess. Finding a hint in the windows logs is very complicated. I saw in the windows device manager that I already have 1 of my remotes paired and remembered that it was month ago for a test.

Ralf

9

Here is the log i downloaded from the bluetooth driver - maybe someone can identify something in there? (removed the timestamps for character limit)

bt	INFO	D | btstack_crypto.c:495 | Elliptic curve: Y
bt	INFO	D | btstack_crypto.c:493 | Elliptic curve: X
bt	INFO	D | btstack_crypto.c:503 | sm_generate_f_rng: size 32 - offset 0
bt	INFO	D | btstack_crypto.c:530 | set uECC RNG for initial key generation with 64 random bytes
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	I | socket_server.c:186 | Bluetooth status: ON
bt	INFO	I | socket_server.c:1648 | BT connection count change: 0
bt	INFO	D | hci.c:8230 | BTSTACK_EVENT_NR_CONNECTIONS_CHANGED 0
bt	INFO	D | hci.c:1284 | Connection closed: handle 0x40, AC:12:03:D5:29:37
bt	INFO	I | hog_keyboard.c:1114 | Disconnected, status=0, device_index=-1, con_handle=0x40, reason=0x16
bt	INFO	W | hog_keyboard.c:1223 | Pairing failed: REMOTE_USER_TERMINATED_CONNECTION. device_index=-1, con_handle=0x40, address=AC:12:03:D5:29:37 LE_PUBLIC
bt	INFO	D | btstack_crypto.c:948 | start ecc random
bt	INFO	D | sm.c:5119 | sm: generate new ec key
bt	INFO	D | sm.c:1106 | sm: connection 0x40 released setup context
bt	INFO	D | gatt_client.c:1817 | GATT Client: HCI_EVENT_DISCONNECTION_COMPLETE
bt	INFO	I | socket_server.c:398 | daemon_remove_gatt_client_helper for con_handle 0x0040
bt	INFO	D | hci.c:1673 | Num LE Peripheral roles: 0 of 3
bt	INFO	D | hci.c:1667 | state 7, role 1, le_con 1
bt	INFO	D | sm.c:2887 | sm_run: state 57
bt	INFO	D | sm.c:2887 | sm_run: state 57
bt	INFO	D | sm.c:2887 | sm_run: state 57
bt	INFO	I | hog_keyboard.c:1160 | [0] no active profile! Abort pairing, disconnecting AC:12:03:D5:29:37
bt	INFO	D | att_server.c:441 | SM Pairing started
bt	INFO	D | sm.c:2887 | sm_run: state 49
bt	INFO	D | sm.c:4433 | public key received, generation method 1
bt	INFO	D | sm.c:1990 | dhkey
bt	INFO	D | btstack_crypto.c:596 | dhkey
bt	INFO	D | sm.c:2887 | sm_run: state 50
bt	INFO	D | sm.c:2887 | sm_run: state 50
bt	INFO	D | sm.c:2887 | sm_run: state 50
bt	INFO	I | hog_keyboard.c:1126 | Pairing started, con_handle=0x40, address=AC:12:03:D5:29:37 LE_PUBLIC
bt	INFO	D | sm.c:1260 | SMP: generation method 1
bt	INFO	D | sm.c:911 | sm_setup_tk: master io cap: 4, slave io cap: 2 -> method 1
bt	INFO	D | sm.c:860 | Secure pairing: 1
bt	INFO	D | sm.c:1207 | peer address AC:12:03:D5:29:37 type 0
bt	INFO	D | sm.c:1206 | our  address DC:FE:23:C4:0C:C9 type 0
bt	INFO	D | sm.c:2887 | sm_run: state 32
bt	INFO	D | sm.c:2451 | sm: connection 0x0040 locked setup context as responder, state 32
bt	INFO	I | hog_keyboard.c:1094 | No keyboard profile found for AC:12:03:D5:29:37
bt	INFO	I | hog_keyboard.c:1084 | Connection complete, status=0, device_index=-1, con_handle=0x40, role=1, peer_address=AC:12:03:D5:29:37 LE_PUBLIC, sm_peer_addr: AC:12:03:D5:29:37 LE_PUBLIC
bt	INFO	I | socket_server.c:186 | Bluetooth status: ACTIVE
bt	INFO	I | socket_server.c:1648 | BT connection count change: 1
bt	INFO	D | hci.c:8230 | BTSTACK_EVENT_NR_CONNECTIONS_CHANGED 1
bt	INFO	D | att_server.c:424 | SM_EVENT_IDENTITY_RESOLVING_FAILED
bt	INFO	D | sm.c:2328 | LE Device Lookup: not found
bt	INFO	D | att_server.c:404 | SM_EVENT_IDENTITY_RESOLVING_STARTED
bt	INFO	D | hci.c:3517 | New connection: handle 64, AC:12:03:D5:29:37
bt	INFO	D | hci.c:1673 | Num LE Peripheral roles: 1 of 3
bt	INFO	D | hci.c:1667 | state 4, role 1, le_con 1
bt	INFO	D | hci.c:329 | create_connection_for_addr AC:12:03:D5:29:37, type 0
bt	INFO	D | hci.c:3387 | LE Connection_complete (status=0) type 0, AC:12:03:D5:29:37
bt	INFO	D | btstack_util.c:334 | dhk    E3BC25102A69354F3F44B0CFEC22464F
bt	INFO	D | sm.c:2207 | DKG_CALC_DHK started
bt	INFO	D | btstack_util.c:334 | irk    98337A3D6835B7C8F540C70881CE506A
bt	INFO	D | btstack_crypto.c:495 | Elliptic curve: Y
bt	INFO	D | btstack_crypto.c:493 | Elliptic curve: X
bt	INFO	D | btstack_crypto.c:503 | sm_generate_f_rng: size 32 - offset 0
bt	INFO	D | btstack_crypto.c:530 | set uECC RNG for initial key generation with 64 random bytes
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:948 | start ecc random
bt	INFO	D | sm.c:2196 | DKG_CALC_IRK started
bt	INFO	D | hci.c:9044 | hci_le_set_own_address_type: old 0, new 0
bt	INFO	D | sm.c:5119 | sm: generate new ec key
bt	INFO	D | btstack_util.c:334 | IR     33BEBEEE93D51B8D7C3FEC1A41FE3EDC
bt	INFO	D | sm.c:3783 | IR from TLV
bt	INFO	D | btstack_util.c:334 | ER     0BD8333AC4F5532E58C2A0F442CB305F
bt	INFO	D | sm.c:3871 | ER from TLV
bt	INFO	D | sm.c:3864 | HCI Working!
bt	INFO	I | socket_server.c:186 | Bluetooth status: ON
bt	INFO	I | socket_server.c:1643 | New HCI state: WORKING
bt	INFO	I | main.c:483 | BTstack up and running on DC:FE:23:C4:0C:C9
bt	INFO	D | le_device_db_tlv.c:159 | num valid le device entries 0
bt	INFO	D | btstack_tlv.c:48 | TLV Instance 0xaaaac8613d30
bt	INFO	D | btstack_tlv_posix.c:190 | BTstack Magic Header found
bt	INFO	D | btstack_tlv_posix.c:180 | open db /var/uc/bt/btstack.tlv
bt	INFO	D | main.c:447 | TLV path: /var/uc/bt/btstack.tlv
bt	INFO	D | hci.c:1673 | Num LE Peripheral roles: 0 of 3
bt	INFO	D | hog_keyboard.c:556 | update_le_advertisement (27): 1
bt	INFO	I | hog_keyboard.c:363 | Advertising local name: Remote3 C40CC9 (14)
bt	INFO	D | main.c:316 | Local BD address file already exists
bt	INFO	D | main.c:614 | Cancel initialization shutdown timer
bt	INFO	I | main.c:610 | HCI state: INITIALIZING -> WORKING
bt	INFO	D | hci.c:8157 | BTSTACK_EVENT_STATE 2
bt	INFO	D | hci.c:1866 | hci_init_done -> HCI_STATE_WORKING
bt	INFO	D | hci.c:2890 | hci_le_read_white_list_size: size 128
bt	INFO	D | hci.c:2884 | hci_le_read_maximum_data_length: tx octets 251, tx time 2120 us
bt	INFO	D | hci.c:2877 | hci_le_read_buffer_size: acl size 251, acl count 15
bt	INFO	D | hci.c:2176 | BCM: Route SCO data via HCI transport
bt	INFO	D | hci.c:2968 | BR/EDR support 1, LE support 1
bt	INFO	D | hci.c:2965 | SCO Packet types 03ff - eSCO 1
bt	INFO	D | hci.c:2961 | ACL Packet types ff1e
bt	INFO	D | hci.c:2847 | hci_read_buffer_size: ACL size module 1021 -> used 1021, count 8 / SCO size 64, count 1
bt	INFO	D | hci.c:2928 | Local Address, Status: 0x00: Addr: DC:FE:23:C4:0C:C9
bt	INFO	D | hci.c:1930 | Set Public BD ADDR to DC:FE:23:C4:0C:C9
bt	INFO	D | btstack_uart_posix.c:170 | h4_set_baudrate 921600
bt	INFO	D | hci_transport_h4.c:178 | hci_transport_h4_set_baudrate 921600
bt	INFO	D | hci.c:2582 | Local baud rate change to 921600(w4_send_baud_change_bcm))
bt	INFO	D | btstack_crypto.c:1126 | controller supports ECDH operation: 1
bt	INFO	D | hci.c:2799 | Local supported commands summary 00007ffd
bt	INFO	D | hci.c:2794 | Command 0x0e supported 35/5
bt	INFO	D | hci.c:2794 | Command 0x0d supported 35/3
bt	INFO	D | hci.c:2794 | Command 0x0c supported 35/1
bt	INFO	D | hci.c:2794 | Command 0x0b supported 34/0
bt	INFO	D | hci.c:2794 | Command 0x0a supported 32/6
bt	INFO	D | hci.c:2794 | Command 0x09 supported 32/3
bt	INFO	D | hci.c:2794 | Command 0x08 supported 32/1
bt	INFO	D | hci.c:2794 | Command 0x07 supported 27/5
bt	INFO	D | hci.c:2794 | Command 0x06 supported 24/6
bt	INFO	D | hci.c:2794 | Command 0x05 supported 22/2
bt	INFO	D | hci.c:2794 | Command 0x04 supported 20/4
bt	INFO	D | hci.c:2794 | Command 0x03 supported 18/3
bt	INFO	D | hci.c:2794 | Command 0x02 supported 14/7
bt	INFO	D | hci.c:2794 | Command 0x00 supported 2/6
bt	INFO	I | socket_server.c:1573 | DAEMON_EVENT_CONNECTION_OPENED 0xaaaadd925320
bt	INFO	D | socket_connection.c:376 | socket_connection_accept new connection 10
bt	INFO	D | hci.c:2036 | BCM delay (300 ms) after init script
bt	INFO	D | btstack_uart_posix.c:170 | h4_set_baudrate 115200
bt	INFO	D | hci_transport_h4.c:178 | hci_transport_h4_set_baudrate 115200
bt	INFO	D | hci.c:2029 | Local baud rate change to 115200 after init script (bcm)
bt	INFO	D | hci.c:2012 | Init script done
bt	INFO	D | btstack_chipset_bcm.c:152 | chipset-bcm: end of file, size 50584
bt	INFO	D | btstack_chipset_bcm.c:131 | chipset-bcm: open file /opt/uc/bt/fw/BCM4373A0_001.001.025.0103.0155.FCC.CE.2BC.hcd
bt	INFO	D | btstack_uart_posix.c:170 | h4_set_baudrate 921600
bt	INFO	D | hci_transport_h4.c:178 | hci_transport_h4_set_baudrate 921600
bt	INFO	D | hci.c:2546 | Local baud rate change to 921600(w4_send_baud_change)
bt	INFO	D | hci.c:2832 | local name: BCM4373A0
bt	INFO	I | main.c:533 | Set public BD address: DC:FE:23:C4:0C:C9
bt	INFO	I | main.c:436 | Using 921600 baud.
bt	INFO	D | btstack_chipset_bcm.c:120 | chipset-bcm: init folder /opt/uc/bt/fw
bt	INFO	I | main.c:528 | Broadcom/Cypress - using BCM driver.
bt	INFO	D | main.c:493 | Local versions: hci=0x0008 / 0x0000, lmp=0x0008 / 0x2119
bt	INFO	D | hci.c:2984 | Manufacturer: 0x000f
bt	INFO	D | btstack_run_loop_posix.c:170 | POSIX run loop with monotonic clock
bt	INFO	I | socket_server.c:2127 | BTstack Server started on port 13333
bt	INFO	D | socket_connection.c:456 | Server up and running ...
bt	INFO	D | socket_connection.c:401 | Socket created for port 13333
bt	INFO	D | main.c:216 | Using public BD address: DC:FE:23:C4:0C:C9
bt	INFO	D | hog_keyboard.c:1355 | hci_power_control done
bt	INFO	I | socket_server.c:186 | Bluetooth status: OFF
bt	INFO	I | socket_server.c:1643 | New HCI state: INITIALIZING
bt	INFO	D | main.c:627 | Initializing BT controller. Timeout: 5000 ms
bt	INFO	I | main.c:610 | HCI state: OFF -> INITIALIZING
bt	INFO	D | hci.c:8157 | BTSTACK_EVENT_STATE 1
bt	INFO	D | btstack_uart_posix.c:361 | Open tty /dev/ttyS1
bt	INFO	D | btstack_uart_posix.c:170 | h4_set_baudrate 115200
bt	INFO	D | bt_gpiosysfs.c:48 | Enabling Bluetooth with GPIO 28
bt	INFO	D | hci.c:5544 | hci_power_control: 1, current mode 0
bt	INFO	I | kbd_profile.c:487 | Loaded configuration profiles: 0
bt	INFO	D | kbd_profile.c:480 | Loading configuration from: /var/uc/bt
bt	INFO	D | kbd_profile.c:53 | Initializing profiles
bt	INFO	D | hog_keyboard.c:609 | Enabling multiple peripheral connections: 3
bt	INFO	D | hids_device.c:516 | hid_report_value_handle                       0x2f, id 6, type 3
bt	INFO	D | hids_device.c:518 | hid_report_client_configuration_handle        0x2c
bt	INFO	D | hids_device.c:516 | hid_report_value_handle                       0x2b, id 4, type 1
bt	INFO	D | hids_device.c:518 | hid_report_client_configuration_handle        0x28
bt	INFO	D | hids_device.c:516 | hid_report_value_handle                       0x27, id 3, type 1
bt	INFO	D | hids_device.c:518 | hid_report_client_configuration_handle        0x24
bt	INFO	D | hids_device.c:516 | hid_report_value_handle                       0x23, id 2, type 1
bt	INFO	D | hids_device.c:518 | hid_report_client_configuration_handle        0x20
bt	INFO	D | hids_device.c:516 | hid_report_value_handle                       0x1f, id 1, type 1
bt	INFO	D | hids_device.c:457 | hid_control_point_value_handle                      0x3e
bt	INFO	D | hids_device.c:456 | hid_boot_keyboard_input_client_configuration_handle 0x35
bt	INFO	D | hids_device.c:455 | hid_boot_keyboard_output_value_handle               0x37
bt	INFO	D | hids_device.c:454 | hid_boot_keyboard_input_value_handle                0x34
bt	INFO	D | hids_device.c:453 | hid_boot_mouse_input_client_configuration_handle    0x3a
bt	INFO	D | hids_device.c:452 | hid_boot_mouse_input_value_handle                   0x39
bt	INFO	D | hids_device.c:451 | hid_protocol_mode_value_handle                      0x1d
bt	INFO	D | hids_device.c:450 | hid_report_map_handle                               0x32
bt	INFO	I | battery.c:62 | Starting battery poller: 180s
bt	INFO	D | att_db.c:250 | att_set_db 0xaaaac85fef10
bt	INFO	E | le_device_db_tlv.c:164 | btstack_tlv not initialized
bt	INFO	I | hog_keyboard.c:562 | Initializing BLE HID keyboard
bt	INFO	D | bt_gpiosysfs.c:44 | Using sysfs GPIO for BT power control
bt	INFO	I | main.c:427 | H4 device: /dev/ttyS1
bt	INFO	D | bt_gpiosysfs.c:48 | Enabling Bluetooth with GPIO 28
bt	INFO	D | bt_gpiosysfs.c:53 | Disabling Bluetooth with GPIO 28
bt	INFO	I | main.c:1089 | Power cycling Bluetooth controller
bt	INFO	I | main.c:1076 | Packet log: /tmp/hci_dump.pklg
bt	INFO	D | btstack_run_loop_posix.c:320 | Pipe: in 6, out 5
bt	INFO	D | btstack_run_loop_posix.c:320 | Pipe: in 4, out 3
bt	INFO	I | main.c:1048 | Version 0.6.0 (2025-07-30 11:23:26)
bt	INFO	D | main.c:699 | Good bye, see you.
bt	INFO	D | kbd_profile.c:491 | Saving configuration to: /var/uc/bt
bt	INFO	D | main.c:619 | Cancel force shutdown timer
bt	INFO	I | main.c:610 | HCI state: HALTING -> OFF
bt	INFO	D | hci.c:8157 | BTSTACK_EVENT_STATE 0
bt	INFO	D | hci.c:5741 | HCI_STATE_HALTING, emitting state
bt	INFO	D | hci.c:5314 | hci_power_control_off - control closed
bt	INFO	D | bt_gpiosysfs.c:53 | Disabling Bluetooth with GPIO 28
bt	INFO	D | hci.c:5307 | hci_power_control_off - hci_transport closed
bt	INFO	D | hci.c:5302 | hci_power_control_off
bt	INFO	D | hci.c:5736 | HCI_STATE_HALTING, calling off
bt	INFO	D | hci.c:5586 | HCI_STATE_HALTING, substate 48
bt	INFO	D | hci.c:5720 | HCI_STATE_HALTING: wait 50 ms
bt	INFO	D | hci.c:5586 | HCI_STATE_HALTING, substate 43
bt	INFO	D | sm.c:3905 | SM: reset state
bt	INFO	I | socket_server.c:186 | Bluetooth status: OFF
bt	INFO	I | socket_server.c:1643 | New HCI state: HALTING
bt	INFO	I | main.c:610 | HCI state: SLEEPING -> HALTING
bt	INFO	D | hci.c:8157 | BTSTACK_EVENT_STATE 3
bt	INFO	D | hci.c:5544 | hci_power_control: 0, current mode 4
bt	INFO	W | main.c:828 | SIGINT or SIGTERM received, shutting down...
bt	INFO	I | socket_server.c:186 | Bluetooth status: OFF
bt	INFO	I | socket_server.c:1643 | New HCI state: SLEEPING
bt	INFO	I | main.c:610 | HCI state: FALLING_ASLEEP -> SLEEPING
bt	INFO	D | hci.c:8157 | BTSTACK_EVENT_STATE 4
bt	INFO	D | hci.c:5321 | hci_power_control_sleep
bt	INFO	D | hci.c:5786 | HCI_STATE_HALTING, calling sleep
bt	INFO	D | hci.c:5775 | HCI_STATE_HALTING, disabling inq scans
bt	INFO	D | hci.c:5755 | HCI_STATE_FALLING_ASLEEP
bt	INFO	D | hci.c:5755 | HCI_STATE_FALLING_ASLEEP
bt	INFO	I | socket_server.c:186 | Bluetooth status: OFF
bt	INFO	I | socket_server.c:1643 | New HCI state: FALLING_ASLEEP
bt	INFO	D | main.c:712 | BTSTACK_EVENT_STATE: 0x05
bt	INFO	I | main.c:610 | HCI state: WORKING -> FALLING_ASLEEP
bt	INFO	D | hci.c:8157 | BTSTACK_EVENT_STATE 5
bt	INFO	D | hci.c:5544 | hci_power_control: 2, current mode 2
bt	INFO	I | socket_server.c:1037 | BTSTACK_SET_POWER_MODE 2
bt	INFO	I | socket_server.c:1106 | BTSTACK_GAP_ADVERTISEMENTS_ENABLE: 0
bt	INFO	D | battery.c:47 | Battery level changed: 93
bt	INFO	D | battery.c:47 | Battery level changed: 94
bt	INFO	D | battery.c:47 | Battery level changed: 95
bt	INFO	D | btstack_crypto.c:495 | Elliptic curve: Y
bt	INFO	D | btstack_crypto.c:493 | Elliptic curve: X
bt	INFO	D | btstack_crypto.c:503 | sm_generate_f_rng: size 32 - offset 0
bt	INFO	D | btstack_crypto.c:530 | set uECC RNG for initial key generation with 64 random bytes
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	I | socket_server.c:186 | Bluetooth status: ON
bt	INFO	I | socket_server.c:1648 | BT connection count change: 0
bt	INFO	D | hci.c:8230 | BTSTACK_EVENT_NR_CONNECTIONS_CHANGED 0
bt	INFO	D | hci.c:1284 | Connection closed: handle 0x40, AC:12:03:D5:29:37
bt	INFO	I | hog_keyboard.c:1114 | Disconnected, status=0, device_index=-1, con_handle=0x40, reason=0x16
bt	INFO	W | hog_keyboard.c:1223 | Pairing failed: REMOTE_USER_TERMINATED_CONNECTION. device_index=-1, con_handle=0x40, address=AC:12:03:D5:29:37 LE_PUBLIC
bt	INFO	D | btstack_crypto.c:948 | start ecc random
bt	INFO	D | sm.c:5119 | sm: generate new ec key
bt	INFO	D | sm.c:1106 | sm: connection 0x40 released setup context
bt	INFO	D | gatt_client.c:1817 | GATT Client: HCI_EVENT_DISCONNECTION_COMPLETE
bt	INFO	I | socket_server.c:398 | daemon_remove_gatt_client_helper for con_handle 0x0040
bt	INFO	D | hci.c:1673 | Num LE Peripheral roles: 0 of 3
bt	INFO	D | hci.c:1667 | state 7, role 1, le_con 1
bt	INFO	D | sm.c:2887 | sm_run: state 57
bt	INFO	D | sm.c:2887 | sm_run: state 57
bt	INFO	D | sm.c:2887 | sm_run: state 57
bt	INFO	I | hog_keyboard.c:1160 | [0] no active profile! Abort pairing, disconnecting AC:12:03:D5:29:37
bt	INFO	D | att_server.c:441 | SM Pairing started
bt	INFO	D | sm.c:2887 | sm_run: state 49
bt	INFO	D | sm.c:4433 | public key received, generation method 1
bt	INFO	D | sm.c:1990 | dhkey
bt	INFO	D | btstack_crypto.c:596 | dhkey
bt	INFO	D | sm.c:2887 | sm_run: state 50
bt	INFO	D | sm.c:2887 | sm_run: state 50
bt	INFO	D | sm.c:2887 | sm_run: state 50
bt	INFO	I | hog_keyboard.c:1126 | Pairing started, con_handle=0x40, address=AC:12:03:D5:29:37 LE_PUBLIC
bt	INFO	D | sm.c:1260 | SMP: generation method 1
bt	INFO	D | sm.c:911 | sm_setup_tk: master io cap: 4, slave io cap: 2 -> method 1
bt	INFO	D | sm.c:860 | Secure pairing: 1
bt	INFO	D | sm.c:1207 | peer address AC:12:03:D5:29:37 type 0
bt	INFO	D | sm.c:1206 | our  address DC:FE:23:C4:0C:C9 type 0
bt	INFO	D | sm.c:2887 | sm_run: state 32
bt	INFO	D | sm.c:2451 | sm: connection 0x0040 locked setup context as responder, state 32
bt	INFO	I | hog_keyboard.c:1094 | No keyboard profile found for AC:12:03:D5:29:37
bt	INFO	I | hog_keyboard.c:1084 | Connection complete, status=0, device_index=-1, con_handle=0x40, role=1, peer_address=AC:12:03:D5:29:37 LE_PUBLIC, sm_peer_addr: AC:12:03:D5:29:37 LE_PUBLIC
bt	INFO	I | socket_server.c:186 | Bluetooth status: ACTIVE
bt	INFO	I | socket_server.c:1648 | BT connection count change: 1
bt	INFO	D | hci.c:8230 | BTSTACK_EVENT_NR_CONNECTIONS_CHANGED 1
bt	INFO	D | att_server.c:424 | SM_EVENT_IDENTITY_RESOLVING_FAILED
bt	INFO	D | sm.c:2328 | LE Device Lookup: not found
bt	INFO	D | att_server.c:404 | SM_EVENT_IDENTITY_RESOLVING_STARTED
bt	INFO	D | hci.c:3517 | New connection: handle 64, AC:12:03:D5:29:37
bt	INFO	D | hci.c:1673 | Num LE Peripheral roles: 1 of 3
bt	INFO	D | hci.c:1667 | state 4, role 1, le_con 1
bt	INFO	D | hci.c:329 | create_connection_for_addr AC:12:03:D5:29:37, type 0
bt	INFO	D | hci.c:3387 | LE Connection_complete (status=0) type 0, AC:12:03:D5:29:37
bt	INFO	D | btstack_util.c:334 | dhk    E3BC25102A69354F3F44B0CFEC22464F
bt	INFO	D | sm.c:2207 | DKG_CALC_DHK started
bt	INFO	D | btstack_util.c:334 | irk    98337A3D6835B7C8F540C70881CE506A
bt	INFO	D | btstack_crypto.c:495 | Elliptic curve: Y
bt	INFO	D | btstack_crypto.c:493 | Elliptic curve: X
bt	INFO	D | btstack_crypto.c:503 | sm_generate_f_rng: size 32 - offset 0
bt	INFO	D | btstack_crypto.c:530 | set uECC RNG for initial key generation with 64 random bytes
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:961 | more ecc random
bt	INFO	D | btstack_crypto.c:948 | start ecc random
bt	INFO	D | sm.c:2196 | DKG_CALC_IRK started
bt	INFO	D | hci.c:9044 | hci_le_set_own_address_type: old 0, new 0
bt	INFO	D | sm.c:5119 | sm: generate new ec key
bt	INFO	D | btstack_util.c:334 | IR     33BEBEEE93D51B8D7C3FEC1A41FE3EDC
bt	INFO	D | sm.c:3783 | IR from TLV
bt	INFO	D | btstack_util.c:334 | ER     0BD8333AC4F5532E58C2A0F442CB305F
bt	INFO	D | sm.c:3871 | ER from TLV
bt	INFO	D | sm.c:3864 | HCI Working!
bt	INFO	I | socket_server.c:186 | Bluetooth status: ON
bt	INFO	I | socket_server.c:1643 | New HCI state: WORKING
bt	INFO	I | main.c:483 | BTstack up and running on DC:FE:23:C4:0C:C9
bt	INFO	D | le_device_db_tlv.c:159 | num valid le device entries 0
bt	INFO	D | btstack_tlv.c:48 | TLV Instance 0xaaaabdd04d30
bt	INFO	D | btstack_tlv_posix.c:190 | BTstack Magic Header found
bt	INFO	D | btstack_tlv_posix.c:180 | open db /var/uc/bt/btstack.tlv
bt	INFO	D | main.c:447 | TLV path: /var/uc/bt/btstack.tlv
bt	INFO	D | hci.c:1673 | Num LE Peripheral roles: 0 of 3
bt	INFO	D | hog_keyboard.c:556 | update_le_advertisement (27): 1
bt	INFO	I | hog_keyboard.c:363 | Advertising local name: Remote3 C40CC9 (14)
bt	INFO	D | main.c:316 | Local BD address file already exists
bt	INFO	D | main.c:614 | Cancel initialization shutdown timer
bt	INFO	I | main.c:610 | HCI state: INITIALIZING -> WORKING
bt	INFO	D | hci.c:8157 | BTSTACK_EVENT_STATE 2
bt	INFO	D | hci.c:1866 | hci_init_done -> HCI_STATE_WORKING
bt	INFO	D | hci.c:2890 | hci_le_read_white_list_size: size 128
bt	INFO	D | hci.c:2884 | hci_le_read_maximum_data_length: tx octets 251, tx time 2120 us
bt	INFO	D | hci.c:2877 | hci_le_read_buffer_size: acl size 251, acl count 15
bt	INFO	D | hci.c:2176 | BCM: Route SCO data via HCI transport
bt	INFO	D | hci.c:2968 | BR/EDR support 1, LE support 1
bt	INFO	D | hci.c:2965 | SCO Packet types 03ff - eSCO 1
bt	INFO	D | hci.c:2961 | ACL Packet types ff1e
bt	INFO	D | hci.c:2847 | hci_read_buffer_size: ACL size module 1021 -> used 1021, count 8 / SCO size 64, count 1
bt	INFO	D | hci.c:2928 | Local Address, Status: 0x00: Addr: DC:FE:23:C4:0C:C9
bt	INFO	D | hci.c:1930 | Set Public BD ADDR to DC:FE:23:C4:0C:C9
bt	INFO	D | btstack_uart_posix.c:170 | h4_set_baudrate 921600
bt	INFO	D | hci_transport_h4.c:178 | hci_transport_h4_set_baudrate 921600
bt	INFO	D | hci.c:2582 | Local baud rate change to 921600(w4_send_baud_change_bcm))
bt	INFO	D | btstack_crypto.c:1126 | controller supports ECDH operation: 1
bt	INFO	D | hci.c:2799 | Local supported commands summary 00007ffd
bt	INFO	D | hci.c:2794 | Command 0x0e supported 35/5
bt	INFO	D | hci.c:2794 | Command 0x0d supported 35/3
bt	INFO	D | hci.c:2794 | Command 0x0c supported 35/1
bt	INFO	D | hci.c:2794 | Command 0x0b supported 34/0
bt	INFO	D | hci.c:2794 | Command 0x0a supported 32/6
bt	INFO	D | hci.c:2794 | Command 0x09 supported 32/3
bt	INFO	D | hci.c:2794 | Command 0x08 supported 32/1
bt	INFO	D | hci.c:2794 | Command 0x07 supported 27/5
bt	INFO	D | hci.c:2794 | Command 0x06 supported 24/6
bt	INFO	D | hci.c:2794 | Command 0x05 supported 22/2
bt	INFO	D | hci.c:2794 | Command 0x04 supported 20/4
bt	INFO	D | hci.c:2794 | Command 0x03 supported 18/3
bt	INFO	D | hci.c:2794 | Command 0x02 supported 14/7
bt	INFO	D | hci.c:2794 | Command 0x00 supported 2/6
bt	INFO	D | hci.c:2036 | BCM delay (300 ms) after init script
bt	INFO	D | btstack_uart_posix.c:170 | h4_set_baudrate 115200
bt	INFO	D | hci_transport_h4.c:178 | hci_transport_h4_set_baudrate 115200
bt	INFO	D | hci.c:2029 | Local baud rate change to 115200 after init script (bcm)
bt	INFO	D | hci.c:2012 | Init script done
bt	INFO	D | btstack_chipset_bcm.c:152 | chipset-bcm: end of file, size 50584
bt	INFO	I | socket_server.c:1573 | DAEMON_EVENT_CONNECTION_OPENED 0xaaaaf7287320
bt	INFO	D | socket_connection.c:376 | socket_connection_accept new connection 11
bt	INFO	D | btstack_chipset_bcm.c:131 | chipset-bcm: open file /opt/uc/bt/fw/BCM4373A0_001.001.025.0103.0155.FCC.CE.2BC.hcd
bt	INFO	D | btstack_uart_posix.c:170 | h4_set_baudrate 921600
bt	INFO	D | hci_transport_h4.c:178 | hci_transport_h4_set_baudrate 921600
bt	INFO	D | hci.c:2546 | Local baud rate change to 921600(w4_send_baud_change)
bt	INFO	D | hci.c:2832 | local name: BCM4373A0
bt	INFO	I | main.c:533 | Set public BD address: DC:FE:23:C4:0C:C9
bt	INFO	I | main.c:436 | Using 921600 baud.
bt	INFO	D | btstack_chipset_bcm.c:120 | chipset-bcm: init folder /opt/uc/bt/fw
bt	INFO	I | main.c:528 | Broadcom/Cypress - using BCM driver.
bt	INFO	D | main.c:493 | Local versions: hci=0x0008 / 0x0000, lmp=0x0008 / 0x2119
bt	INFO	D | hci.c:2984 | Manufacturer: 0x000f
bt	INFO	D | btstack_run_loop_posix.c:170 | POSIX run loop with monotonic clock
bt	INFO	I | socket_server.c:2127 | BTstack Server started on port 13333
bt	INFO	D | socket_connection.c:456 | Server up and running ...
bt	INFO	D | socket_connection.c:401 | Socket created for port 13333
bt	INFO	D | main.c:216 | Using public BD address: DC:FE:23:C4:0C:C9
bt	INFO	D | hog_keyboard.c:1355 | hci_power_control done
bt	INFO	I | socket_server.c:186 | Bluetooth status: OFF
bt	INFO	I | socket_server.c:1643 | New HCI state: INITIALIZING
bt	INFO	D | main.c:627 | Initializing BT controller. Timeout: 5000 ms
bt	INFO	I | main.c:610 | HCI state: OFF -> INITIALIZING
bt	INFO	D | hci.c:8157 | BTSTACK_EVENT_STATE 1
bt	INFO	D | btstack_uart_posix.c:361 | Open tty /dev/ttyS1
bt	INFO	D | btstack_uart_posix.c:170 | h4_set_baudrate 115200
bt	INFO	D | bt_gpiosysfs.c:48 | Enabling Bluetooth with GPIO 28
bt	INFO	D | hci.c:5544 | hci_power_control: 1, current mode 0
bt	INFO	I | kbd_profile.c:487 | Loaded configuration profiles: 0
bt	INFO	D | kbd_profile.c:480 | Loading configuration from: /var/uc/bt
bt	INFO	D | kbd_profile.c:53 | Initializing profiles
bt	INFO	D | hog_keyboard.c:609 | Enabling multiple peripheral connections: 3
bt	INFO	D | hids_device.c:516 | hid_report_value_handle                       0x2f, id 6, type 3
bt	INFO	D | hids_device.c:518 | hid_report_client_configuration_handle        0x2c
bt	INFO	D | hids_device.c:516 | hid_report_value_handle                       0x2b, id 4, type 1
bt	INFO	D | hids_device.c:518 | hid_report_client_configuration_handle        0x28
bt	INFO	D | hids_device.c:516 | hid_report_value_handle                       0x27, id 3, type 1
bt	INFO	D | hids_device.c:518 | hid_report_client_configuration_handle        0x24
bt	INFO	D | hids_device.c:516 | hid_report_value_handle                       0x23, id 2, type 1
bt	INFO	D | hids_device.c:518 | hid_report_client_configuration_handle        0x20
bt	INFO	D | hids_device.c:516 | hid_report_value_handle                       0x1f, id 1, type 1
bt	INFO	D | hids_device.c:457 | hid_control_point_value_handle                      0x3e
bt	INFO	D | hids_device.c:456 | hid_boot_keyboard_input_client_configuration_handle 0x35
bt	INFO	D | hids_device.c:455 | hid_boot_keyboard_output_value_handle               0x37
bt	INFO	D | hids_device.c:454 | hid_boot_keyboard_input_value_handle                0x34
bt	INFO	D | hids_device.c:453 | hid_boot_mouse_input_client_configuration_handle    0x3a
bt	INFO	D | hids_device.c:452 | hid_boot_mouse_input_value_handle                   0x39
bt	INFO	D | hids_device.c:451 | hid_protocol_mode_value_handle                      0x1d
bt	INFO	D | hids_device.c:450 | hid_report_map_handle                               0x32
bt	INFO	I | battery.c:62 | Starting battery poller: 180s
bt	INFO	D | att_db.c:250 | att_set_db 0xaaaabdceff10
bt	INFO	E | le_device_db_tlv.c:164 | btstack_tlv not initialized
bt	INFO	I | hog_keyboard.c:562 | Initializing BLE HID keyboard
bt	INFO	D | bt_gpiosysfs.c:44 | Using sysfs GPIO for BT power control
bt	INFO	I | main.c:427 | H4 device: /dev/ttyS1
bt	INFO	D | bt_gpiosysfs.c:48 | Enabling Bluetooth with GPIO 28
bt	INFO	D | bt_gpiosysfs.c:53 | Disabling Bluetooth with GPIO 28
bt	INFO	I | main.c:1089 | Power cycling Bluetooth controller
bt	INFO	I | main.c:1076 | Packet log: /tmp/hci_dump.pklg
bt	INFO	D | btstack_run_loop_posix.c:320 | Pipe: in 6, out 5
bt	INFO	D | btstack_run_loop_posix.c:320 | Pipe: in 4, out 3
bt	INFO	I | main.c:1048 | Version 0.6.0 (2025-07-30 11:23:26)
bt	INFO	Waiting for GPIO 28 permissions update...
10

Removed every device already paired… no luck.
And i already tried two different win pcs - again no luck.

11

Have you enabled “just works” in settings, development, preview features?

Default is pairing only with pairing code and a lot of device do or can not display a pairing code.

Ralf

12

Yep, I’ve enabled this option too :frowning:

13

Does the device support a keyboard? R3 only acts as a HID. In Your log is an entry “No keyboard profile found”

Ralf

14

I’m trying to connect to a windows pc, I have connected bt keyboards before

15

Have you removed the Bluetooth keyboard in Windows? My Windows PC only accepted 1 connection.

Ralf

16

No bt connection active

No keyboard even paired.

Recently formatted win11

I have connected a bt keyboard to it before the clean installation so I know it works.

I have also tried connecting it to a thinkpad (laptop) with the same error, so I’m tending to believe the issue might be with the remote? Some other setting maybe?

17

I just tested a minute ago with my Windows 11 and 2.6.3 R3.

grafik
grafik677×250 44.6 KB

Because I do not do it each month I had also errors but as you can see it worked.

Ralf

18

I can’t figure it out :frowning:

Here are my remote’s settings:

image1063×622 26.3 KB

image1092×442 43.7 KB

I still get this error:


Summary of what i’ve tried:

  • I have updated the latest BT drivers from Intel.

  • I do not have any other device connected to the pc.

  • I just tried to connect my logitech keyboard through BT and it works ok

  • I factory reset the remote

  • I have tried on two more win11 laptops (and an android device) not being able to connect it as keyboard

I see this error in the logs, I dont know what it means:

bt INFO I | hog_keyboard.c:1094 | No keyboard profile found for AC:12:03:D5:29:37← this is the correct BT mac of my pc

Here is my full BT log: 2025-08-01 09:59:24.603941 +00:00 bt INFO D | btstack_util.c:334 | dhk 08AB9A - Pastebin.com

19

One thing I could think of. The Remote 2/3 only support BlueTooth Low Energy (BLE) which should be part of BlueTooth >= 4. I made my test with a USB BueTooth 5.4 adapter.

I did test again. On my PC with Bt 5.4 adapter only one Remote could be paired as keyboard but it workd at once. I then tested further with my Galaxy Tab S6 and it also worked at once.

“no keyboard profile” I also saw on your first log. I think this is the problem. Because it is a laptop it does normally not need a 2nd keyboard. Don´t you have a real PC or Tablet?

Ralf

20

First of all thanks for sticking with me <3

The main pc I’m using is a desktop (the other two I tried were laptops)

This is the network card on my PC, which indicates BT5.2

I have previously paired BT keyboards on both the desktop and the laptops btw

Let me try on my tab S7

Edit: Can’t pair on Galaxy Tab S7 “Couldn’t pair. Check settings for this device and try again” - exactly the same message as my s23u
