Finally got around to checking this out. I was able to successfully upload to code to R2, but as far as I can tell, the Bluesound Node does not respond. I’ll reach out to them for a code set, but IR is challenging given the way I mounted the device in my media cabinet. I needed an excuse to play with Home Assistant, this might be it. Thx!
1 Like
Hey Markk…
IR formats are new (and a mystery) to me. Do I just copy and paste into an Excel spread sheet and save as a .csv file? Is the header ‘manufacturer… … … code’ included? When uploading is the ‘delimiter’ field left blank or populated with a " , " as with Pronto codes?
Thx
“,” doesn´t do it for me. I have to use “;” as a delimiter in web-configurator for some reason.

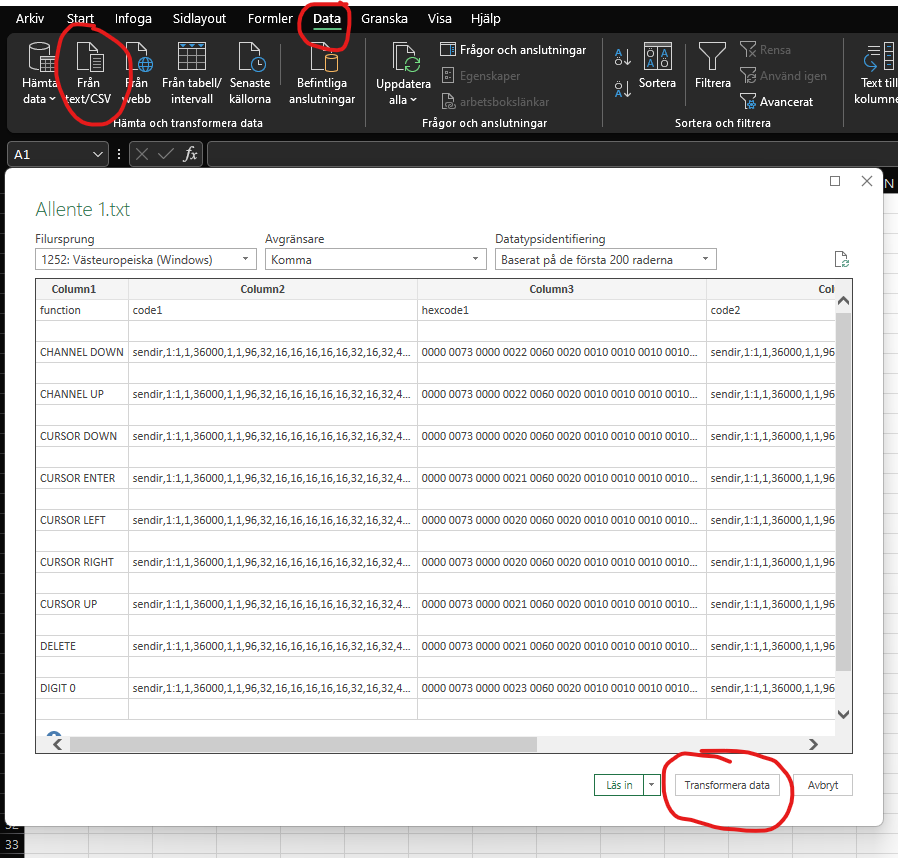

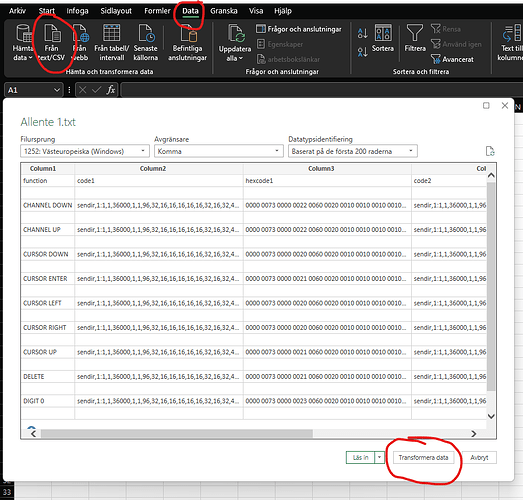

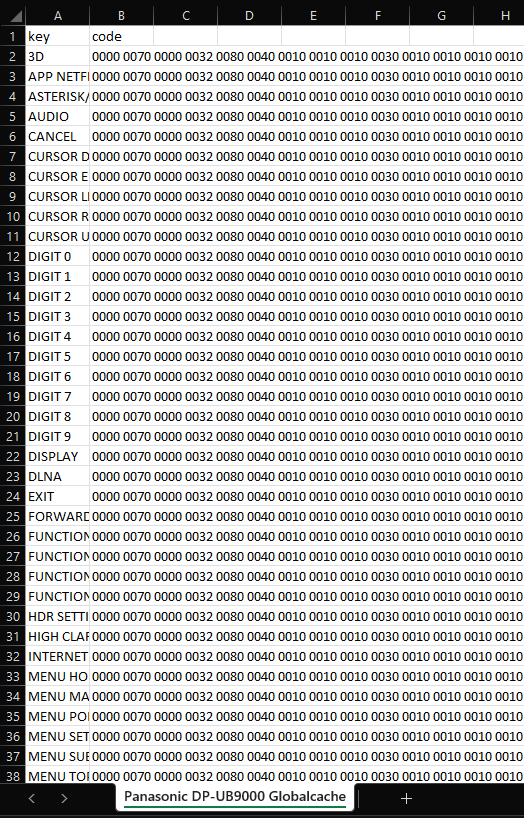

Your excel should look like this and be saved as .csv There are maybe several ways to do this but I use to copy all text from for example Globalcache into Notes and save. Import data as “from text/csv”, get rid of unnecessary columns and rows with “transform data”. When you´re happy save as .csv
1 Like
Hey greggo,
I’m not a professional either, when it comes to these IR formats. But I can let you see what the cvs-file I got from the remote 2 looks like when opened in a text-editor:
“manufacturer”,“device”,“key”,“format”,“code”
“Custom - learned IR codes”,“Bluesound Node 2i”,“Volumeup”,“HEX”,“3;0x61F0CA35;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,“Volumedown”,“HEX”,“3;0x61F02AD5;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,“Up”,“HEX”,“3;0x61F0827D;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,“Down”,“HEX”,“3;0x61F042BD;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,“Left”,“HEX”,“3;0x61F08A75;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,“Right”,“HEX”,“3;0x61F00AF5;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,“Play”,“HEX”,“3;0x61F0E21D;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,“Pause”,“HEX”,“3;0x61F0E21D;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,“Mute”,“HEX”,“3;0x61F0AA55;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,1,“HEX”,“3;0x61F0DA25;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,2,“HEX”,“3;0x61F03AC5;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,3,“HEX”,“3;0x61F0BA45;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,4,“HEX”,“3;0x61F07A85;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,5,“HEX”,“3;0x61F0FA05;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,6,“HEX”,“3;0x61F006F9;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,7,“HEX”,“3;0x61F01EE1;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,8,“HEX”,“3;0x61F09E61;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,9,“HEX”,“3;0x61F05EA1;32;0”
“Custom - learned IR codes”,“Bluesound Node 2i”,10,“HEX”,“3;0x61F0DE21;32;0”
“Custom - learned IR codes”,“Panasonic TV”,“PowerToggle”,“HEX”,“5;0x40040100BCBD;48;0”
Thanks, I’m running Excel on a Mac and my “Data” layout looks doesn’t have the same ribbon header as yours (ie no reference for Text/CSV or Transform Data button). I’ll need to spend some time, but I should be able to figure it out…
Thank goodness for ‘copy-and-paste’. Should be able to get either your learned or Lurifuxx’s GlobalCache codes in somehow. Not urgent and again gives me the excuse to spend some time learning IR technology
Thanks Markk… Codes work perfectly, just had a hard time creating the .csv file without introducing errors… Would love it if BlueOS would create an AppleTV app for navigation. My new crusade
glad to hear
from what I know best is not to use excel or similar programs… as these sometimes add additional code
