Manufacturer: madVR
Model: envy core
Hi,
I am looking for the csv with the ir-codes for the envy core. It‘s for the remote3.
I would be very happy if somebody could share the info.
Best
If you have the original remote, you can learn the commands with the dock. If not, it seems the GlobalCache database contains an IR set for the Envy series: Database | Global Caché Control Tower
1 Like
Thank you.
I’ve got the code for the Power-Button.
These Code were sent to me:
code set: 7625
function: POWER TOGGLE
code1: sendir,1:1,1,38000,1,69,347,173,22,22,22,22,22,22,22,65,22,65,22,65,22,22,22,22,22,22,22,22,22,22,22,22,22,65,22,22,22,22,22,65,22,22,22,22,22,22,22,22,22,22,22,22,22,22,22,22,22,65,22,65,22,65,22,65,22,65,22,65,22,65,22,65,22,1657,347,87,22,3692
hex code1: 0000 006C 0022 0002 015B 00AD 0016 0016 0016 0016 0016 0016 0016 0041 0016 0041 0016 0041 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0041 0016 0016 0016 0016 0016 0041 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0679 015B 0057 0016 0E6C
code2:
hex code2:

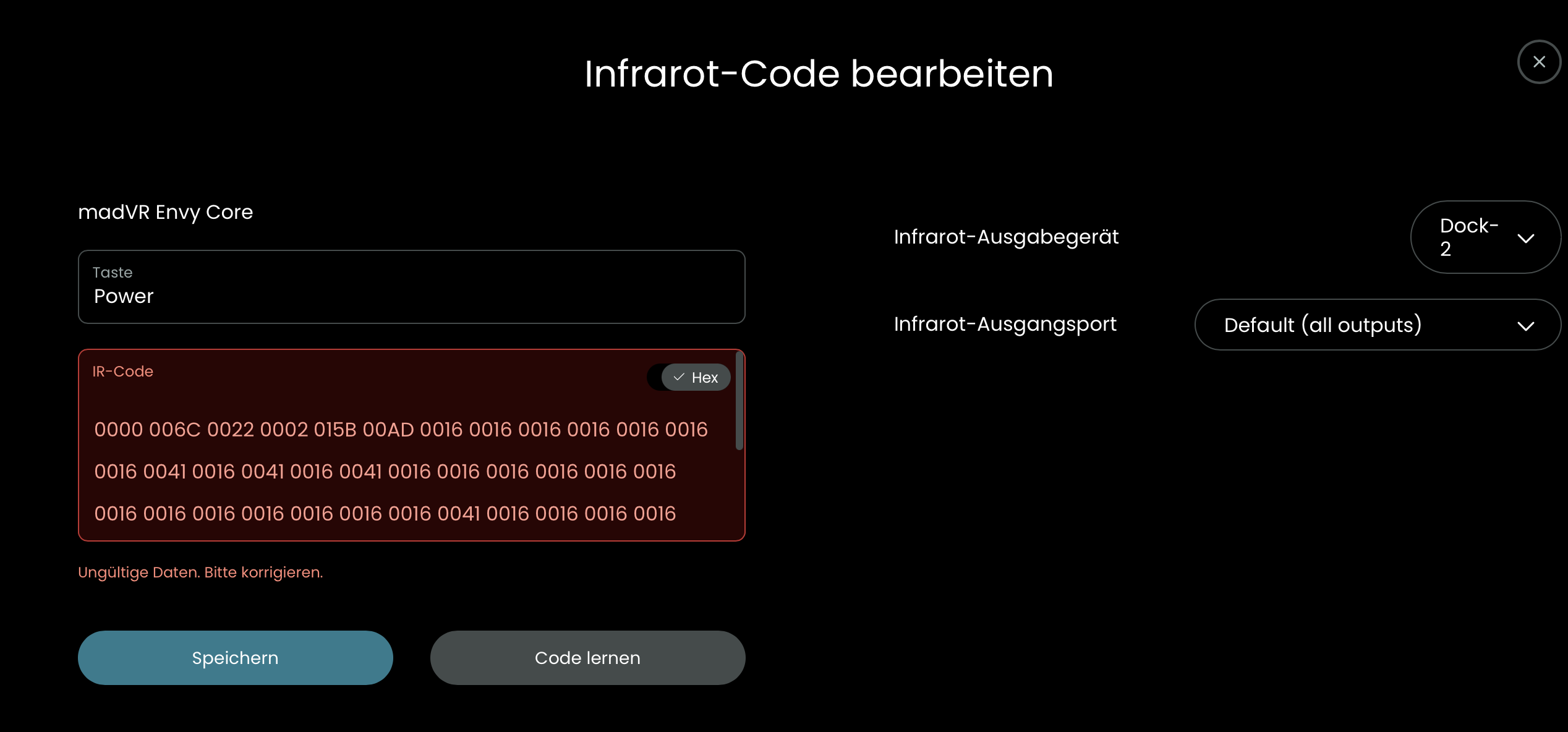

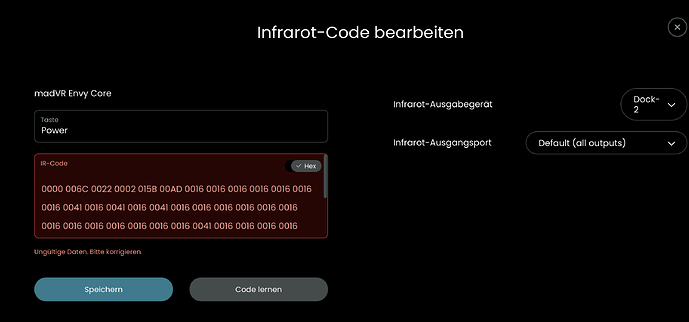

I tried to insert the Hex-Code but it did not work. Can you see what I did wrong?
Attached a screenshot. It would be absolutely awesome if you could help me.
Thank you so much.
1 Like
Try changing Hex to Proton. Click the Hex button in the IR code field.
1 Like
Super, thanks, ok now saving was possible.
I have to test it.
I will give an info if it works. Would be awesome
All works fine.
I downloaded all IR-Codes and there were no trouble at all.
My Remote 3 is now able to control the envy Core with the “FLIRC”-stick, AWESOME!
I would attache the CSV-File so somebody can use it too but there is no possibility to do that in this post.
1 Like
2 Likes
Thank you for posting the code. It saved me from having to create an account
1 Like
Good to know there is an IP integration with HA. I don’t have HA yet but am considering it. I do wish there was a MadVR integration with the UC3. How does one make that happen?
The people who have a great need for this kind of universal remote completely intersect with the people who have video processors so am surprised the MadVR and Lumagen don’t have IP integrations from the beginning.
Lumagen is available
I mispoke! Wasn’t really looking as I have a MadVR myself which currently is not on the offficial database but a forum user was kind enough to provide the IR codes.
Guess that is telling as to which video processor is more popular!
MadVR was mentioned in this thread for integration ideas/ Integration ideas? - #137 by M.a.S.e
2 Likes
@kennymc.c thanks for pointing the thread out. They were asking for testers just 20 minutes ago so I DMd the person. Good timing on your message!
@techted you should actually thank @kennymc.c , apperantly he is my Boss moving forward
he usally tag me when people ask for integrations and if its interesting enough, i try this was no coincident, this was @kennymc.c reverse physcology that clearly work on me lol
1 Like
thank you both @M.a.S.e @kennymc.c !
+1
2 Likes
