A small tip to help reduce both battery wear, and heat, while on wireless charge

So, i have a wireless charger by my sofa for the R3. The remote charges to 100% at stays there while going really hot.

I thought this couldnt be any good for the battery, nor the remote, so i got me one of these: Zigbee 3.0 Micro-USB-Adapterschalter, Mini-Smart-Stecker, 5 V USB-Typ-C-Netzteil, Timer-Ein-Aus-Steuerung, funktioniert mit Tuya Zigbee2MQTT - AliExpress 44

It works as a charm. I am now turning off the charger after some time at 100%, and starts the charger again when the battery reaches 5%.

This is done from my Home Assistant :slight_smile:

hi,

sounds interesting, but what if you want to use the remote and the battery has only 5% left?? :slight_smile:

I keep it in the cradle (3d printed - fits my need perfectly) most of the time so it’s really no problem - for me :slight_smile:

1 Like

What about if you need to change something via the Web Configurator?

I’m constantly tweaking my remote. If it’s not charging or awake, it can’t be reached by IP.

I have the TPU bumper case on mine. Don’t know if it helps with the heat issue or not.

You guys seem to create more problems than solving one hehe :slight_smile:

It works for me, is all i’m saying.

I’m also tweaking my remote many times a day, and if i need a charge while doing config - i just flick it on in my Home Assistant dash.

constantly charging to 100% and discharging to 5% really wears out your battery as it causes a lot of stress. It’s a lot healthier to have it cycle between 40% and 80%. It would be even better if Unfolded Circle would build in a charging limiter like some smartphones have, so you can cap the charging percentage to say 80% or 90%, so it can sit on a charger all the time without damaging the battery

2 Likes

100% agree with you there!

Is the 3d printed cradle available for purchase? I’ve seen the design and downloadable plans, but I don’t have a 3d printer.

I’m doing exactly that with home automation: Limit charging to 80%. As the battery life is already quite bad I don’t want the battery to wear out too quickly which it would.

Except: if UC tells us that 100% is actually 80%, who knows… But I assume not.

I’ve had my Remote 3, no dock, just a few weeks and can confirm that it gets extremely hot no matter what wireless charger I use, and I’ve tried quite a few from pretty old ones to some recent ones including a Google Pixelsnap and an Anker MagGo Qi2 Power Bank - the Pixelsnap is the worst as it makes the remote almost unbearable to hold until it cools.

I’ve been monitoring it with Home Assistant (HA) and the charging profile is simply aggressive

It didn’t stop charging until I happen to spot it when I woke up in the night - I don’t the remote is truly powering down. Something I’ve not seen mentioned in threads is “wake on LAN”, because this actually works. Even though I can’t ping or connect to the device on the network, it’s actually still “connected” as proven by checking my Unifi console. The WoWLAN actually works as I can wake up the remote via HA - probably the first wireless device I have owned that supports it and actually works.

I’m working on an HA automation to keep an eye on the charging and to switch it off when it’s been sat at 100%, then later if the remote’s LAN wakes up or at set intervals HA wakes it up, it will switch the charging back on if it’s too low.

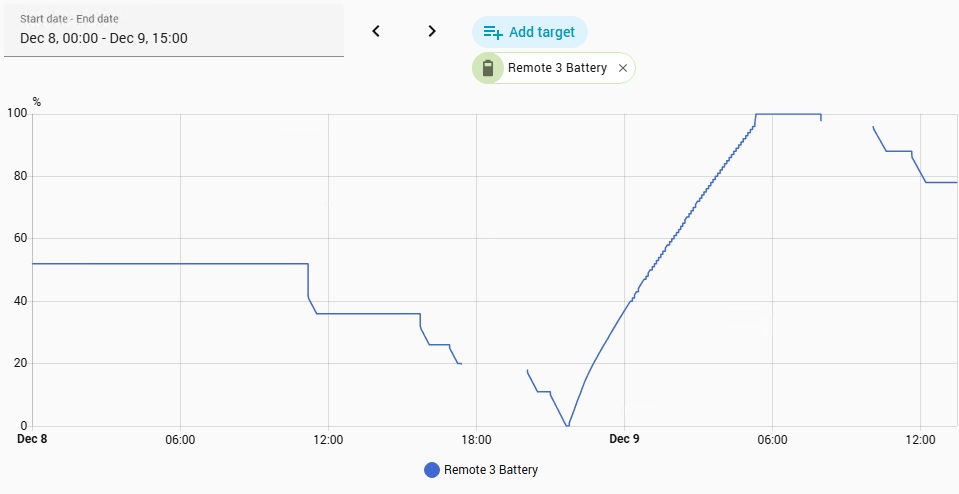

Mine. Seems pretty similar.
